A vibrating screen is a tough piece of equipment that sorts materials by their size. Think of it like a big sifter you might use in a kitchen, but for rocks, sand, or coal. In places like mines or mineral plants, these machines are key. They help separate materials before crushing, pull water out of wet stuff, or clean out slimy bits during processing.
Here’s the deal: the screen shakes, making materials hop and slide across a mesh. Tiny pieces slip through the holes, while bigger chunks stay on top. Imagine shaking a tray of mixed dirt and stones—fine dirt falls through, but stones don’t. The two main kinds are Circular Vibrating Screen and Linear Vibrating Screen. Each moves materials differently, and that’s what sets them apart.
Even though they work in their own ways, both Circular Vibrating Screen and Linear Vibrating Screen have similar parts. These include:
Screen Box: The frame that holds the mesh where sorting happens.
Vibration Source: Motors or exciters that make the machine shake.
Screen Surface: A mesh or plate with holes to separate materials.
Support Structure: Strong legs or a base to keep everything steady.
These parts team up to handle materials smoothly. But the way the shaking happens is what makes each screen special.

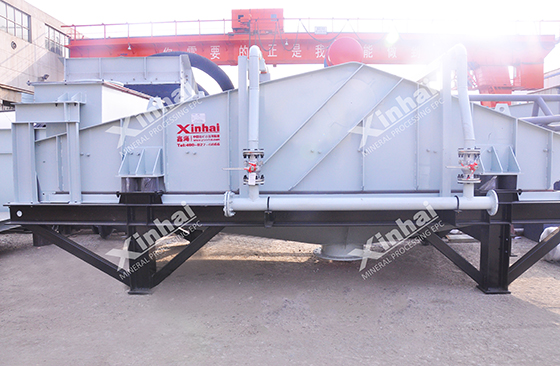

The big difference comes down to how materials move. On a Linear Vibrating Screen, stuff slides in a straight line. A vibrating motor kicks things up and forward at the same time. This is perfect for sorting tiny bits, like fine sand or mineral powders, with precision.

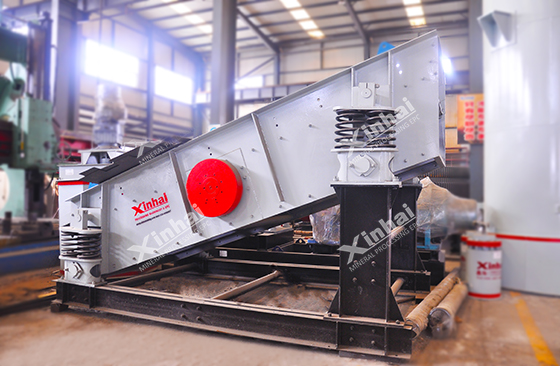

On the flip side, a Circular Vibrating Screen makes materials move in a round or oval path. It uses a single-shaft design, which is great for bigger, heavier stuff like rocks or coal. For example, in a quarry, these screens tackle chunky gravel without a hitch.
Circular Vibrating Screens are the go-to for tough jobs, like mining or coal handling, where materials are heavy and rough. Linear screens, though, shine in tasks needing careful sorting, like in mineral plants where precision matters.
Each screen has its own strengths. Linear Vibrating Screens are top-notch for detailed work. They’re great for pulling water out of wet materials, cleaning out sticky sludge, or sorting fine particles. Picture a copper mine where wet ore needs drying before the next step—a linear screen handles that like a pro.
Circular Vibrating Screens, meanwhile, are built for heavy-duty tasks. They process huge amounts of coarse materials fast, like in the early stages of crushing rocks at a quarry. For instance, if you’re sorting a pile of limestone chunks, a circular screen can churn through 50 tons an hour without breaking a sweat.
Honestly, if you’re working with super fine materials, a Linear Vibrating Screen feels like the better bet. But for raw, bulky stuff, Circular Vibrating Screens are hard to top.
Maintenance is a big factor. Linear Vibrating Screens use two motors that work together, spinning in opposite directions. This creates a straight-line shake that’s easy on the machine’s frame. The forces balance out in one direction, so parts don’t wear out as fast. Plus, these screens use less power, which cuts energy bills. You can adjust the screen’s angle for better sorting, and they don’t need a huge foundation, so building costs stay low.
Circular Vibrating Screens take more of a beating. Their round motion spreads force unevenly, stressing parts like bearings or springs. They’re tough enough for abrasive materials, like in coal mines, but you might need to check them every 3-4 months to avoid breakdowns. For example, a mining plant running 24/7 could swap bearings twice a year to keep things smooth.
Linear Vibrating Screens give you lots of control. You can tweak the angle or vibration speed to match your materials. Say you’re sorting wet clay one day and dry gravel the next—a linear screen adjusts easily. This makes them a favorite in plants with changing needs.
Circular Vibrating Screens are simpler. They’re easy to set up and run, like a reliable pickup truck. But they’re not as flexible. If you’re in a quarry dealing with steady, heavy materials, their no-fuss design is a win. You don’t need to mess with settings when you’re just crushing rocks all day.
Personally, I think linear screens are awesome for complex jobs, but circular ones are great when you need something that just works, no questions asked.
Choosing the right screen depends on your job. Here’s a quick breakdown:
For fine sorting or drying wet materials, pick a Linear Vibrating Screen. It’s precise and handles delicate tasks well.
For big, heavy materials or high volumes, go with a Circular Vibrating Screen. It’s made for tough jobs.
Think about energy costs. Linear screens often save power, which adds up over time.
Check your space. Linear screens need less foundation support, so they fit in tight spots.
Your materials make a difference too. Wet, sticky clay? A Linear Vibrating Screen’s precision is key. Dry, chunky ore? A Circular Vibrating Screen gets it done faster. Also, keep an eye on your budget and local rules. Some plants need quiet machines to meet noise limits. Talking to experts like Xinhai Mining can point you to the right choice.
The screening world is changing fast. Companies are all about saving energy and adding smart tech. New screens have sensors that check things like vibration strength or motor temperature. For example, a sensor might warn you after 600 hours of use if a part’s overheating, so you can fix it before it breaks.
Green practices are huge now. Low-noise screens and eco-friendly materials are popping up as companies aim to follow environmental rules. In places like Australia, mines face strict noise limits, so they pick screens that run quietly. Modular designs are also trending—you can swap out a worn mesh without replacing the whole machine, saving time and money.
| Feature | Linear Vibrating Screen (DZS) | Round (Circular) Vibrating Screen (YA) |
|---|---|---|
| Introduction | Linear vibrating screen — the screen box makes a reciprocating linear motion; typically used for fine screening. | Round (circular) vibrating screen — an advanced vibrating screen with circular motion; used for general screening with high capacity. |
| Capacity | 20–300 t/h | 80–1700 t/h |
| Key Improvements / Design Highlights |
|
|
| Working Principle | Driven by two vibration motors. When motors rotate synchronously or counter-rotationally, transverse forces cancel and a longitudinal resultant force acts on the screen surface — producing a straight-line motion. The combination of exciting force and gravity causes material to be thrown up and move forward in a straight line, achieving screening and classification. | Adopts an eccentric shaft vibration exciter and eccentric block to adjust amplitude. The vibrator mounted on the side plate forces the screen box to vibrate in a circular motion; screen angle is adjustable via spring support height changes. |
Xinhai Mining builds custom solutions for your needs. Whether you’re drying fine minerals in a gold plant or sorting heavy gravel in a quarry, their team looks at your materials, production goals, and site setup. They might suggest a Linear Vibrating Screen for precise tasks or a Circular Vibrating Screen for big, rough jobs.
They don’t just hand you a machine and walk away. Xinhai helps with setup, supplies spare parts, and offers support to keep your operation running. Their engineers know the industry inside out, so they can match equipment to challenges like abrasive rocks or strict environmental rules.
Linear Vibrating Screens are better for fine materials. Their straight-line motion, powered by a vibrating motor, tosses stuff up and forward. This sorts tiny bits, like sand or powder, with great accuracy in a mineral plant.
Switching can be tricky. Both screens use similar parts, like motors, but their shaking styles are different. You might need to change the support frame or how materials feed in. For example, a linear screen’s straight motion needs a different setup than a circular screen’s oval path. Talk to a pro to avoid big headaches.
Look at your material’s size, wetness, and how much you need to process. Also, think about space and power costs. A wet zinc ore plant might need a Linear Vibrating Screen for drying, while a gravel quarry would pick a Circular Vibrating Screen for speed. Experts like Xinhai Mining can study your setup and suggest what works best.
There’s no set rule, but industries have habits. Mining often picks circular screens for heavy, coarse stuff. Mineral processing likes linear screens for fine, wet jobs. Focus on what you need—speed or precision—and check with a manufacturer to match your goals.
